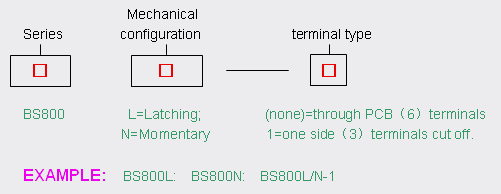

HOW TO ORDER

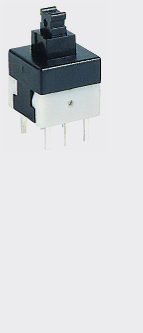

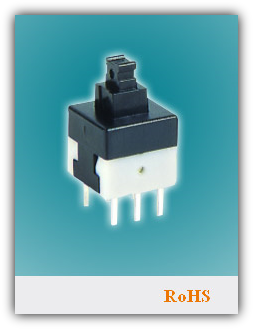

BS800 Series Switch (Push Switches)
Mechanical life: 100,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.1Amps @30 VDC
Insulation Resistance: >100MO DC250V
Withstand Voltage: AC250V 1 minute
Ambient Humidity: Operating Temp. 25° to 65°
Operating Force: 160±80gf
Soldering process: Hand Soldering:Use a soldering iron of 30 watts,controlled at 380° approximately 3 seconds while applying solder
Electrical life: 10,000 cycles min
Contact Rating: 0.1Amps @30 VDC
Insulation Resistance: >100MO DC250V
Withstand Voltage: AC250V 1 minute
Ambient Humidity: Operating Temp. 25° to 65°
Operating Force: 160±80gf
Soldering process: Hand Soldering:Use a soldering iron of 30 watts,controlled at 380° approximately 3 seconds while applying solder

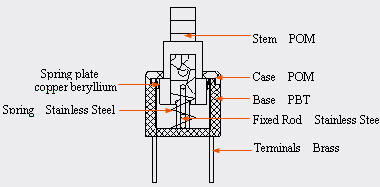

Case: POM
Base: PBT (UL94 V-0)
Stem: POM
Terminals: Brass(Plating silver)
Spring plate: copper beryllium
Spring: Stainless Steel
Fixed Rod: Stainless Steel
Base: PBT (UL94 V-0)
Stem: POM
Terminals: Brass(Plating silver)
Spring plate: copper beryllium
Spring: Stainless Steel
Fixed Rod: Stainless Steel

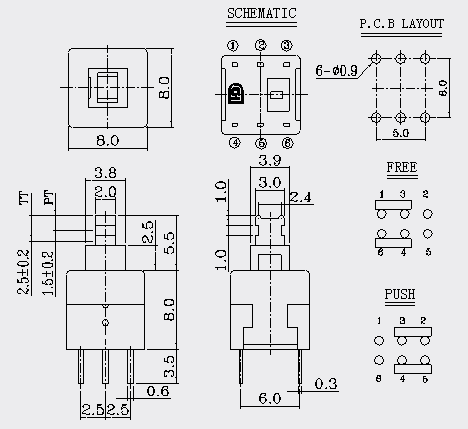

DIMENSION DRAWING of BS800L/N (mm)

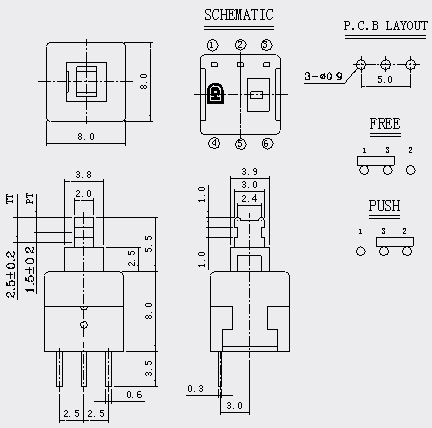

DIMENSION DRAWING of BS800L/N-1 (mm)
PACKING EXPLANATION :
15,000 PCS for one big box(500 PCS for one bag, 5 bags for one small carton,6small cartons for one big box.)
