Mod. R300
Switching Capacity (max) VA 1250
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 250
Contact material / Silver alloy
Switching Current (max) A 5
Ambient temperature ° -40°  + 85°

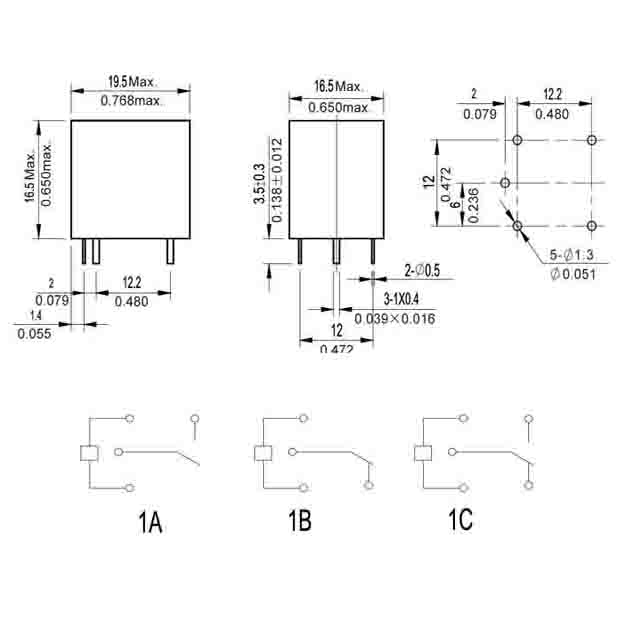

RELE R424
  Mod. R424
Switching Voltage (max) Vdc 110
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 380
Contact material / Silver alloy
Switching Current (max) A 12
Ambient temperature ° -55° + 85°

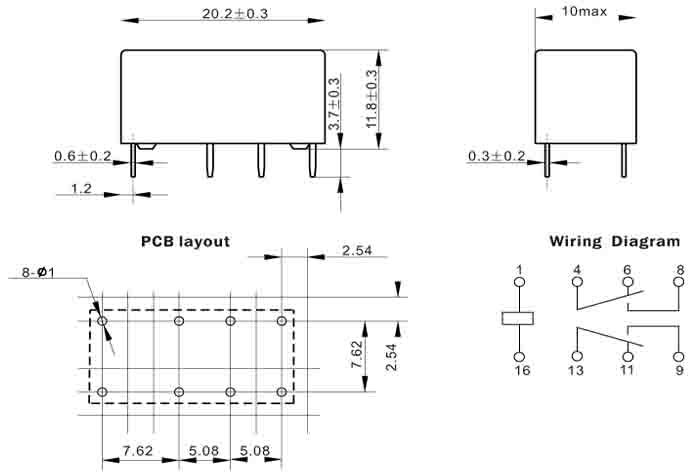

RELE R419
  Mod. R419
Switching Voltage (max) Vdc 24
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 120
Contact material / Silver alloy
Switching Current (max) A 2
Ambient temperature ° -55°  + 85°
  Mod. R604
Switching Voltage (max) Vdc 125
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 440
Contact material / Silver alloy
Switching Current (max) A 20
Ambient temperature ° -40°  + 85°
RELE R604
  Mod. R605
Switching Voltage (max) Vdc 125
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 380
Contact material / Silver alloy
Switching Current (max) A 20
Ambient temperature ° -40°  + 85°
RELE R605
  Mod. R607
Switching Voltage (max) Vdc 125
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 440
Contact material / Silver alloy
Switching Current (max) A 10
Ambient temperature ° -40°  + 85°
RELE R607
  Mod. R340
Switching Capacity (max) W 280
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 40
Contact material / Silver alloy
Switching Current (max) A 20
Ambient temperature ° -40°  + 85°
RELE R340

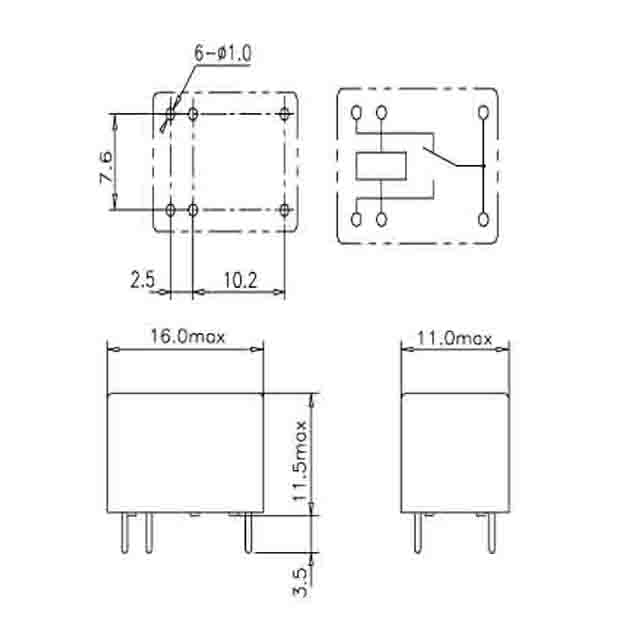

  Mod. R411
Switching Capacity (max) VA 600
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac/Vdc 120/24
Contact material / Silver alloy
Switching Current (max) A 5
Ambient temperature ° -40°  + 105°
RELE R411

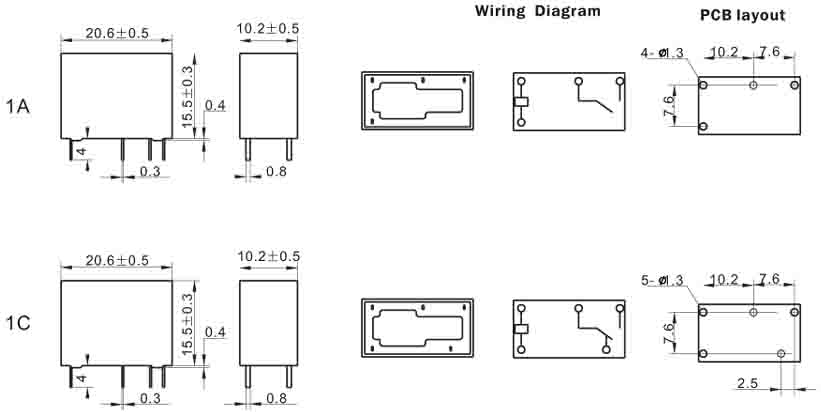

  Mod. R413
Switching Capacity (max) VA 1250
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac/Vdc 277/30
Contact material / Silver alloy
Switching Current (max) A 10
Ambient temperature ° -40°+105°
RELE R413

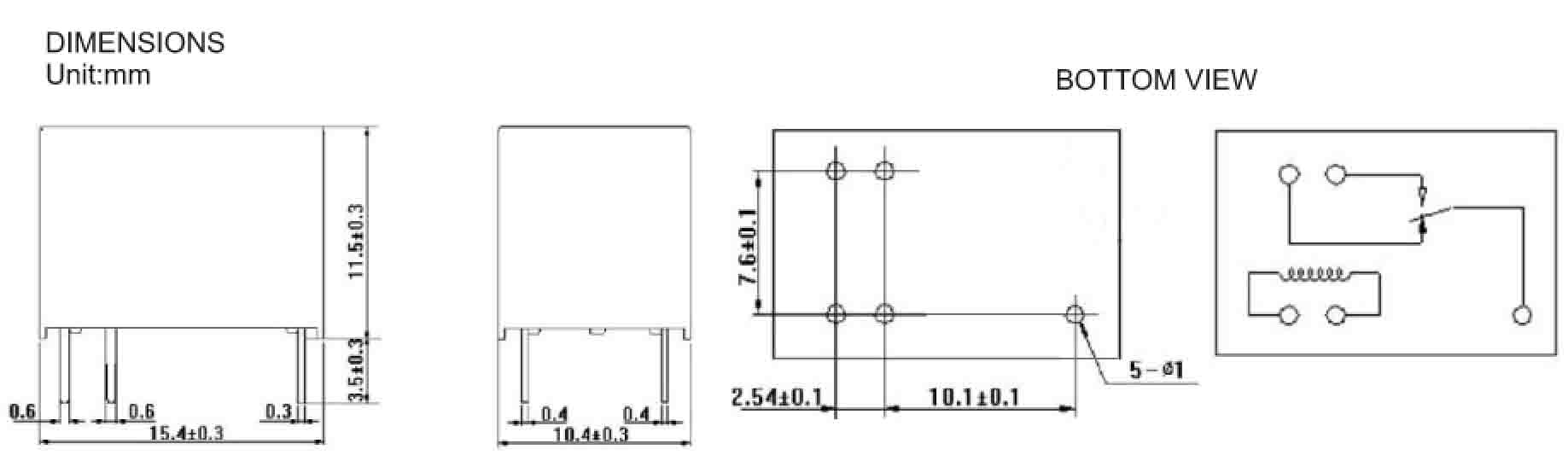

  Mod. R414
Switching Capacity (max) VA 360
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac/Vdc 120/60
Contact material / Silver alloy
Switching Current (max) A 3
Ambient temperature ° -30°  + 75°
RELE R414

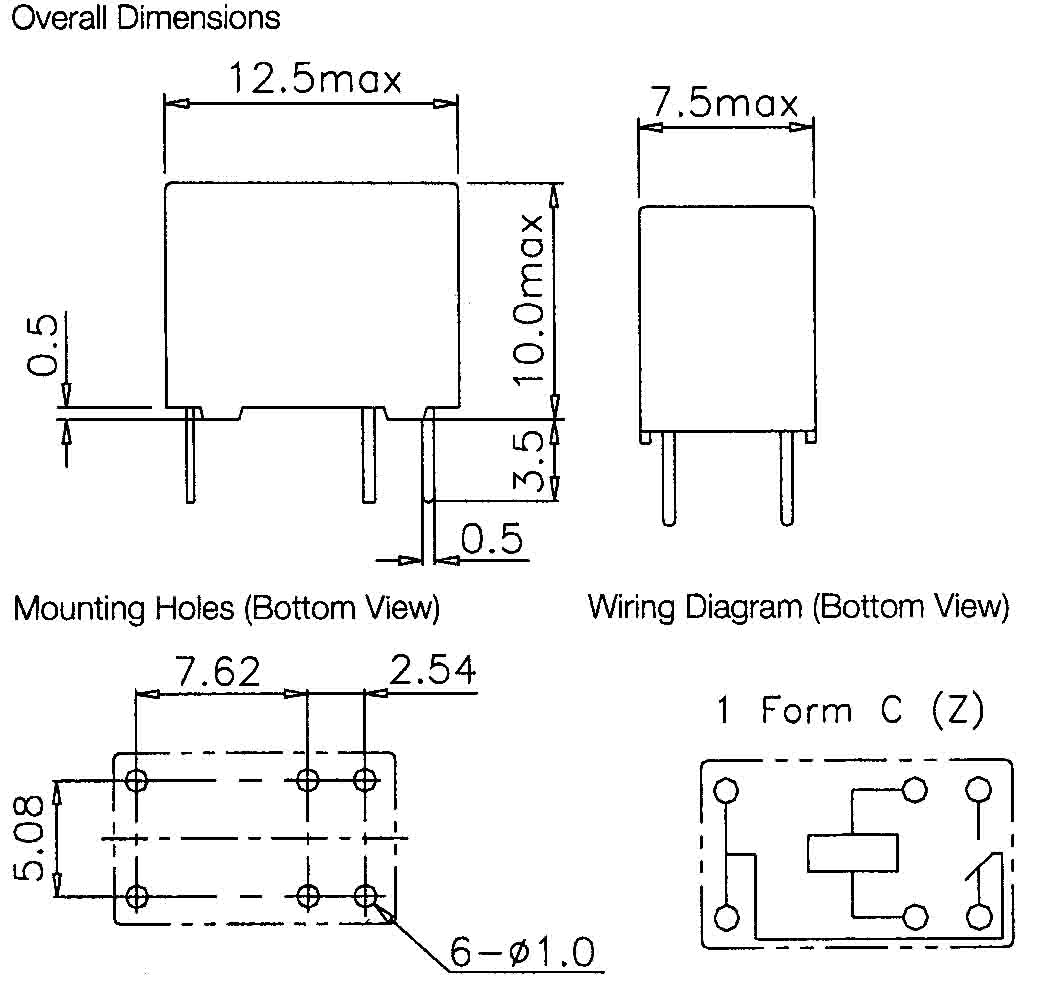

RELE R415
  Mod. R501
Switching Voltage (max) Vdc 14
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 48
Contact material / Silver alloy
Switching Current (max) A 20
Ambient temperature ° -55°  + 85°
RELE R501
  Mod. R415
Switching Capacity (max) VA 62,5
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac/Vdc 125/60
Contact material / Silver alloy
Switching Current (max) A 2
Ambient temperature ° -40°+70°
  Mod. R504
Switching Voltage (max) Vdc 14
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 48
Contact material / Silver alloy
Switching Current (max) A 30
Ambient temperature ° -55° + 85°
RELE R504

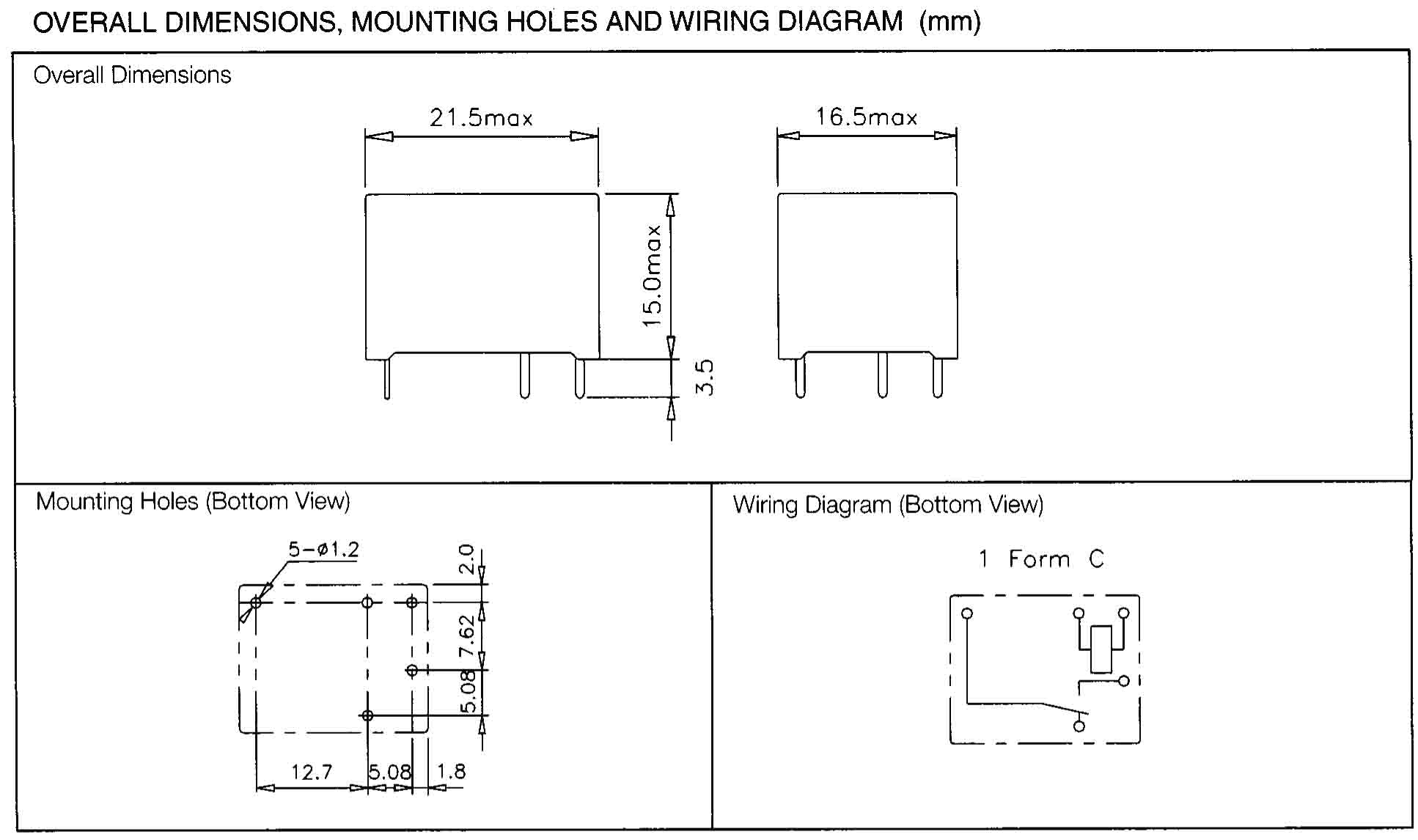

  Mod. R111
Switching Voltage (max) Vdc 24
Standard Coil voltage Vdc 12 or 24
Switching Voltage (max) Vac 120
Contact material / Silver alloy
Switching Current (max) A 10
Ambient temperature ° -30°  + 70°
RELE R111

FITRE PCB RELČ

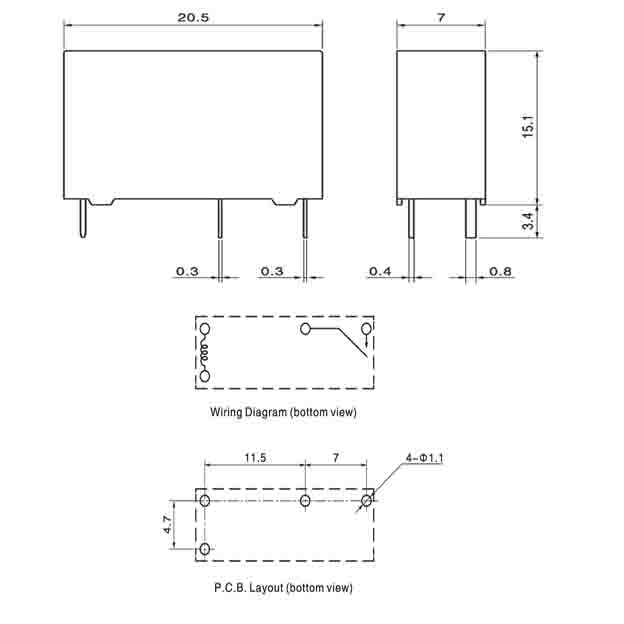

RELE R300
